CLEARLED MICROMESH TOUR
Lightweight. Modular.
Quick to deploy. Quick to dismantle.
Optimized for rental and event applications—ClearLED MicroMESH Tour is lightweight, modular, and quick to deploy or dismantle.
Lightweight design
Transparency
Brightness
80% Transparency Display
Lightweight Design
Snap-in. Snap-out.
Easy Maintenance Access
80% Transparency Display
With up to 80% transparency, superior brightness, and contrast, ClearLED MicroMesh TOUR blends seamlessly into any environment for stunning visuals.
Transparency
nits brightness
Hz refresh rate

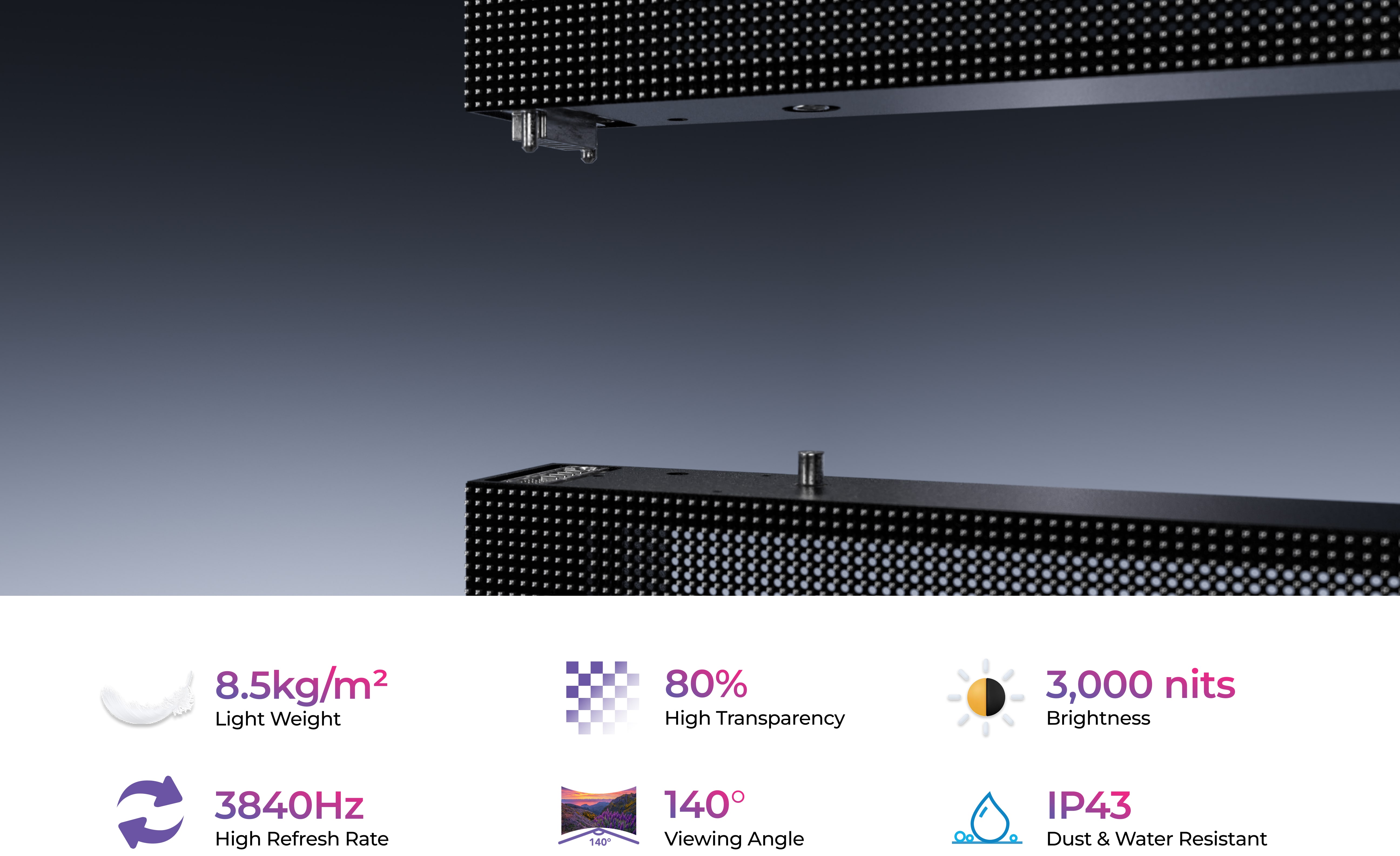

Self-Aligning Module Design
Built-in tension adjustment ensures clean alignment and flawless screen flatness for rapid, accurate installations.
Snap-in Snap-out Connection Design
Snap-in, snap-out connection system enables fast setup and teardown, perfect for time-sensitive event environments.
Easy Maintenance Access
Modules can be quickly serviced or replaced on-site, minimizing downtime and simplifying event support.
Integrated Diagnostic Button
Integrated test button allows rapid pixel and signal checks without external tools or control systems.
MICROMESH TOUR
2種類のピクセルピッチ。
ひとつのモジュラーシステム。
3.9 × 3.9 mm ピクセルピッチ
256 × 256 ピクセル／キャビネット
7.8 × 7.8 mm ピクセルピッチ
128 × 128 ピクセル／キャビネット
| Module | MMT3.9 | MMT7.8 |
|---|---|---|
| Pixel Pitch (mm) | 3.9 x 3.9 | 7.8 x 7.8 |
| Pixel Per Cabinet (pixel) | 256 x 256 | 128 x 128 |
| LED Configuration | SMD 1415 | |
| Cabinet Size | 3.3’ x 3.3’ x 2.4” | 1,000 x 1,000 x 62mm | |
| Brightness (nits) | 3,000 | |
| Transparency | 80% | |
| Viewing Angle (H/V) | 140°/120° | |
| Grayscale (bits) | 16 | |
| Refresh Rate (Hz) | 3,840 | |
| Cabinet Weight (kg/m²) | 8.5 | |
| Max. Power Consumption (W/m²) | 300 | |
| Max. Number of Cabinets (Vertically) Per Power Input |
10pcs (10.00m) | |
| IP Rating | IP43 | |
| Working Temperature (°C) | -20 ~ 50 | |
| Working Humidity (%RH) | 10 ~ 90 | |
| LED Lifetime (hours) | 100,000 | |
ディスプレイ、キャビネット、電源、動作条件の仕様は両モデルに共通です。
80% Transparency Display
With up to 80% transparency, superior brightness, and contrast, ClearLED MicroMesh TOUR blends seamlessly into any environment for stunning visuals.
Lightweight Design
Weighing only 8.5kg/m², ClearLED MicroMesh TOUR reduces strain and logistical challenges, making it the perfect solution for touring productions and temporary installations.
Snap-in Snap-out Connection Design
Snap-in, snap-out connection system enables fast setup and teardown, perfect for time-sensitive event environments.
Modules can be quickly serviced or replaced on-site, minimizing downtime and simplifying event support.
